Mini PCIE (15KLE FPGA), Low Cost

Brand: Geb Enterprise
Product Code: 100801A5
Availability: Out Of Stock

Price: 270.00€

4 or more 230.00€
6 or more 210.00€
10 or more 195.00€

Qty: - OR - Add to Wish List
Add to Compare

0 reviews | Write a review

Description Reviews (0) Related Products (11)

Attention: Available from February 2023

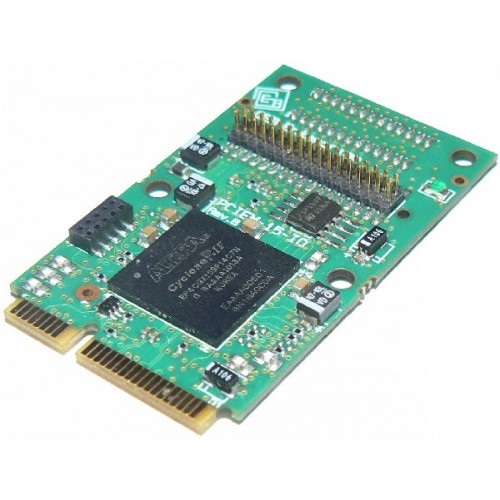

The Mini PCIe card pcb is a small form factor board used to implement the PCI Express interface to expand embedded PC I/O. The card size is 30mm wide by 50.95mm long. The Minicard standard defines a 52-pin card edge connector. The low cost mini PCIe expansion differs from the standard versione for the umber of available I/O, limited to 32 (Only the J2 connector has been fitted). The mini PCIe board can host:

Four parallel PCIe I/O ports
User defined logic, generated using Altera QuartusII
Systems with many intellectual properties (IP), such as UART, I2C, SPI, PWM, SINCRO, FIFO Input, FIFO output, programmable bus controller and so on. The IP types, number of instances and I/O configuration wil be defined using the Fpga Easy Web Editor (FEWE).

Technical details can be found on geb-enterprise website
